Manual palletizing is slow, physically demanding, and prone to inconsistency. Workers tire, productivity drops, and the risk of workplace injuries increases. For high-volume production lines, manual stacking creates a bottleneck that limits overall throughput.
The HM-MD16 PRO Series Palletizers solve this problem. Designed for food, pharmaceutical, 3C electronics, daily chemical, printing, and other industries, these robotic palletizers deliver consistent, high-speed stacking with minimal floor space requirements. Available in standard and high-speed models.

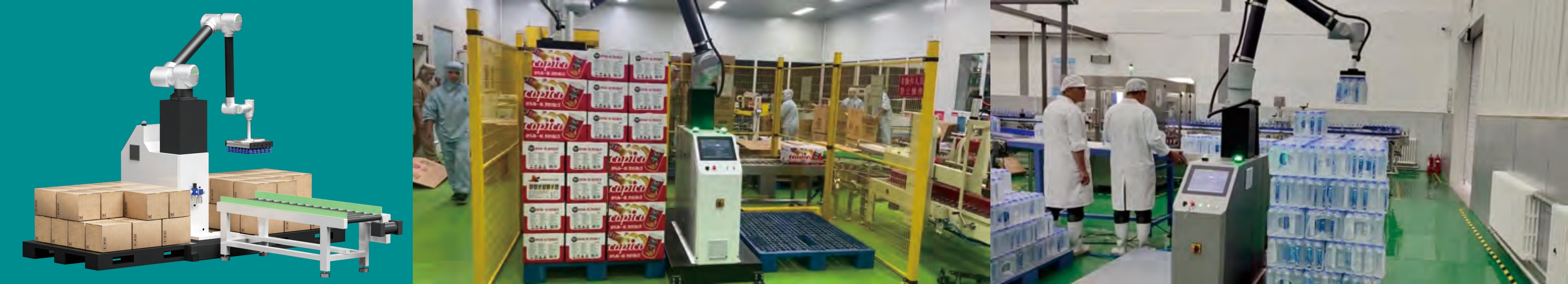

These robotic palletizers automatically pick products from the production line and stack them onto pallets in organized patterns. They handle a wide range of product types, from bagged goods and cartons to trays and cases. The integrated design allows quick deployment and easy task setup.
Parameter | HM-MD16 PRO | HM-MD16 PRO-G |
|---|---|---|
Robot load | 16 kg | 16 kg |
Working radius | 1900 mm | 1900 mm |
Stacking height | 2100 mm | 2100 mm |
Stacking speed | < 540 pcs/h | < 720 pcs/h |
Repeat accuracy | ±0.04 mm | ±0.04 mm |
Communication | TCP/IP | TCP/IP |
IP rating | IP54 | IP54 |
Temperature | 0–55°C | 0–55°C |
Max power | 2.4 kW | 2.4 kW |
Power supply | 220V/50Hz single phase | 220V/50Hz single phase |
Machine weight | 350 kg | 350 kg |
Footprint | 1505 × 1716 mm | 1505 × 1716 mm |
Operating footprint | 3150 × 1716 mm | 3150 × 1716 mm |
Min factory height | 3.2 m | 3.2 m |
The HM-MD16 PRO-G model delivers speeds of up to 720 pieces per hour, while the standard PRO model operates at up to 540 pieces per hour. Both models significantly outperform manual palletizing, eliminating bottlenecks at the end of your production line.
Performance comparison:
Manual palletizing: 100–200 pieces per hour (varies by worker)
HM-MD16 PRO: Up to 540 pieces per hour
HM-MD16 PRO-G: Up to 720 pieces per hour
With repeat positioning accuracy of ±0.04 mm, these palletizers deliver consistent, precise placement every cycle. This accuracy ensures:
Stable pallet stacks that do not tip
Consistent layer patterns for efficient storage
Reduced product damage from misalignment
Professional presentation for retail-ready pallets
Traditional industrial robots require specialized programming skills. The HM-MD16 PRO Series features graphical programming that allows operators to set up palletizing tasks without mastering complex programming languages.
Benefits of graphical programming:
Simple, intuitive interface
Minimal training required
Quick task setup and modification
Reduced dependency on specialized programmers
Space is often limited in production facilities. These palletizers feature an integrated design that is lightweight and flexible, with a compact footprint of just 1505 × 1716 mm.
Space requirements:
Robot footprint: 1505 × 1716 mm
Operating footprint: 3150 × 1716 mm (includes workspace)
Minimum factory height: 3.2 m
The small footprint allows easy integration into existing production layouts without major facility modifications.
Both models are built for demanding industrial conditions:
Feature | Specification |
|---|---|
IP rating | IP54 (dust and splash resistant) |
Temperature range | 0–55°C |
Robot load | 16 kg |
Working radius | 1900 mm |
Stacking height | Up to 2100 mm |
The IP54 rating provides protection against dust and water splashes, making these palletizers suitable for food production environments where regular cleaning is required.
These palletizers are designed for versatility across multiple industries:
Industry | Typical Applications |
|---|---|
Food | Bagged flour, boxed pastries, trayed products, frozen foods |
Pharmaceutical | Cartoned medicines, bottled products, blister packs |
3C Electronics | Boxed components, finished goods |
Daily Chemical | Bottled detergents, boxed soaps, containerized products |
Printing | Stacked paper, cartoned printed materials |
High speed – Up to 720 pieces per hour for demanding production lines.
Precise placement – ±0.04 mm repeat accuracy for stable stacks.
Easy to use – Graphical programming, no coding required.
Compact footprint – 1505 × 1716 mm robot footprint.
Quick deployment – Fast task setup and workstation configuration.
Energy efficient – 2.4 kW max power consumption.
Washdown ready – IP54 rating for dust and splash resistance.
Versatile – Handles multiple product types and industries.
Both models feature TCP/IP communication for seamless integration with production line control systems. This enables:
Remote monitoring and control
Integration with warehouse management systems
Data logging for production tracking
Coordination with upstream and downstream equipment
Manual palletizing is a bottleneck that limits production line throughput and ties up workers in physically demanding, repetitive tasks. The HM-MD16 PRO Series Palletizers automate this process, delivering consistent, high-speed stacking at up to 720 pieces per hour.
With graphical programming, compact footprint, IP54 rating for washdown environments, and single-phase power, these palletizers are practical for a wide range of industries—from food and pharmaceutical to 3C electronics and printing.
Whether you need to palletize bagged flour, boxed medicines, or bottled products, the HM-MD16 PRO Series helps you increase throughput, reduce labor costs, and improve workplace safety.
Ready to automate your palletizing line? Contact us to discuss your speed requirements and product specifications.
