Views: 0 Author: Site Editor Publish Time: 2026-04-21 Origin: Site
Producing dumplings at scale has always been a challenge. Traditional hand-making requires skilled labor, delivers inconsistent results, and limits output. The HM-SJ High-Speed Dumpling Machine solves these problems with fully automated production that delivers consistent weight, shape, and quality at speeds up to 220 pieces per minute.

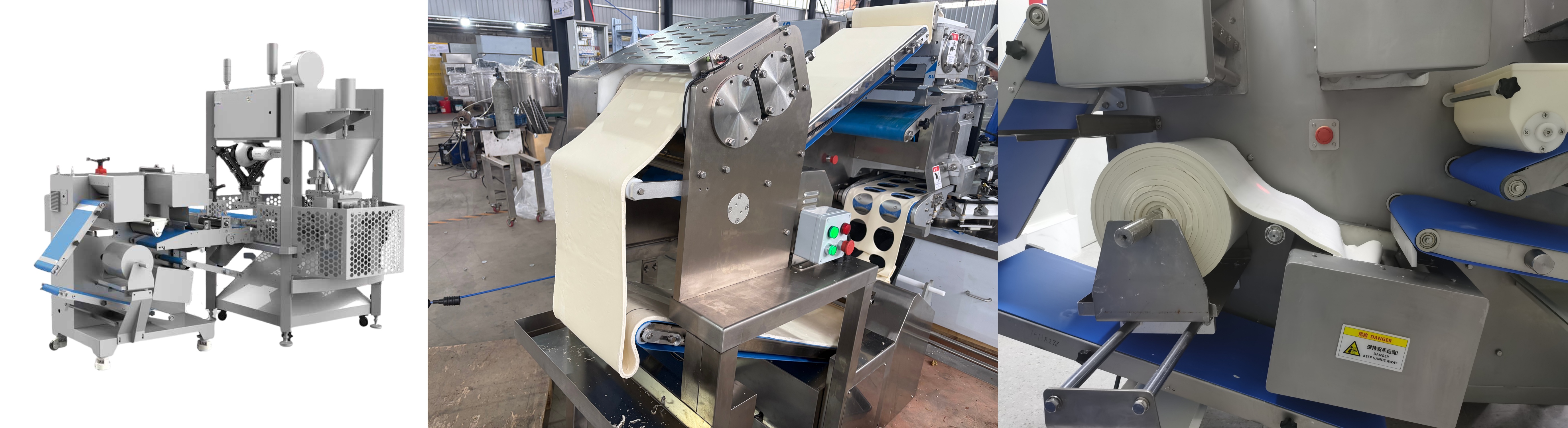

The HM-SJ is a fully automatic high-speed dumpling production system. It handles the entire forming process, delivering finished dumplings ready for freezing, packaging, or cooking. Designed for commercial kitchens, frozen food manufacturers, and dumpling producers, this machine combines precision engineering with robust stainless steel construction.
Key specifications:
Capacity: 150–220 pieces per minute
Dumpling weight range: 14g–26g (multiple preset options)
Power: 13.39 kW (3-Phase 380V)
Air supply: ≥ 0.6 MPa
Dimensions: 2920 × 2830 × 2365 mm
Weight: 1450 kg
The HM-SJ features a direct-drive filling system powered by servo motors and imported reducers. This design ensures consistent, accurate filling for every dumpling. Operators can easily set weight and timing parameters via the user-friendly HMI (Human-Machine Interface), eliminating guesswork and reducing waste.
The machine uses servo systems to adjust motion-to-rest ratios, allowing operators to customize settings for different product types. Whether you are producing small soup dumplings, standard potstickers, or large filled dumplings, the HM-SJ adapts to your recipe. This flexibility maximizes production efficiency while maintaining consistent quality across product changeovers.
Built for demanding commercial environments, the HM-SJ features a full SUS304 stainless steel frame. This material provides superior corrosion resistance, extends service life, and makes cleaning fast and easy. All food-contact surfaces meet food safety standards, ensuring hygienic operation for frozen food and fresh dumpling production.
With a production capacity of 150–220 pieces per minute, the HM-SJ is built for high-volume manufacturing. This output translates to 9,000–13,200 pieces per hour, far exceeding manual production rates. The 13.39 kW 3-phase 380V power supply delivers the performance needed for continuous operation during peak production periods.
Feature | Benefit |
|---|---|
Full SUS304 stainless steel frame | Corrosion resistance, easy cleaning, longer life |
Servo direct-drive filling system | Consistent weight, accurate filling, reduced waste |
HMI touchscreen control | Simple operation, quick parameter adjustment |
Adjustable motion-to-rest ratios | Customizable for different product types |
150-220 pcs/min capacity | High output for large-scale production |
Multiple weight presets | Flexibility for diverse dumpling styles |
Business Type | Why They Need It |
|---|---|
Frozen food manufacturers | Consistent weight and shape for retail packaging |
Dumpling producers | Scale up without increasing labor costs |
Restaurant chains | Centralized production for multiple locations |
Wholesale suppliers | Meet high-volume orders reliably |
Catering businesses | Produce large quantities for events |
Parameter | Specification |
|---|---|
Model | HM-SJ |
Capacity | 150–220 pcs/min |
Dumpling weight | 14-16g, 16-18g, 18-20g, 20-22g, 22-23g, 25-26g, 22g (7-pleat) |
Air supply | ≥ 0.6 MPa |
Power | 13.39 kW |
Voltage | 3-Phase 380V |
Dimensions | 2920 × 2830 × 2365 mm |
Weight | 1450 kg |
Consistent Quality – Every dumpling has the same weight, fill amount, and appearance. No variation between batches or shifts.
Higher Output – Produce up to 13,200 pieces per hour, replacing multiple skilled workers.
Lower Labor Costs – One operator can run the machine, reducing dependence on skilled labor.
Less Waste – Precision filling control eliminates overfilling and underfilling.
Easy Cleaning – SUS304 stainless steel construction and food-grade components simplify sanitation.
Product Flexibility – Adjust motion ratios and weight settings to produce different dumpling styles.
The HM-SJ handles a variety of dumpling types, including:
Pork dumplings – Classic Chinese style
Shrimp dumplings – Premium seafood variety
Chicken dumplings – Health-conscious option
Vegetable dumplings – Plant-based products
Soup dumplings (Xiaolongbao) – With proper filling consistency
Potstickers – For pan-fried applications
Frozen dumplings – Ready-to-cook retail products
Dumplings don't have to be a labor-intensive product that limits your growth. The HM-SJ High-Speed Dumpling Machine proves that you can achieve high-volume production without sacrificing the quality and consistency that customers demand.
With capacities up to 220 pieces per minute, servo-driven precision filling, and full SUS304 stainless steel construction, this machine is a smart investment for any business serious about dumpling production.
Ready to scale up your dumpling production? Contact us to learn more about the HM-SJ and how it can fit into your operation.
